Raise & Lower Foot Trimming Crush

Description

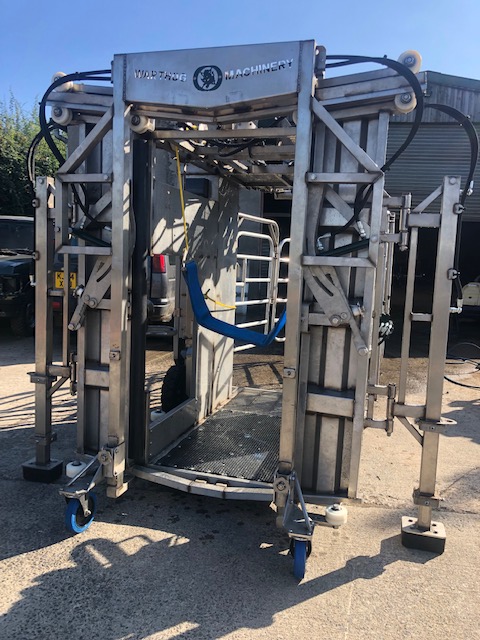

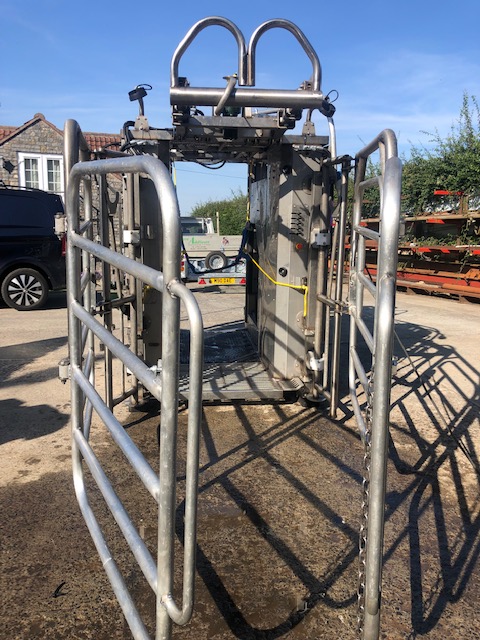

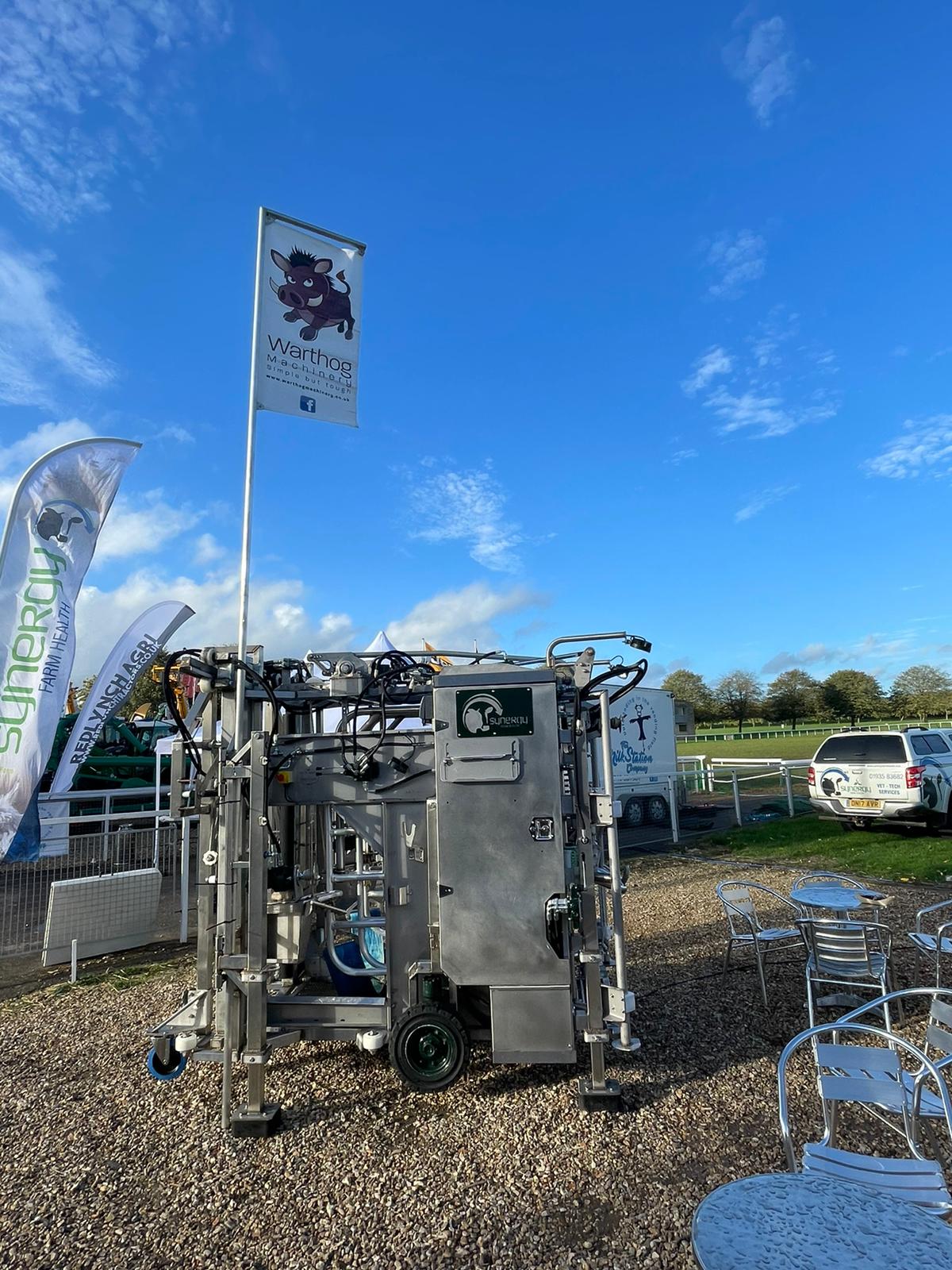

The Raise & Foot Trimming Crush is engineered to provide top-notch performance and durability for livestock handling. Fabricated from stainless steel, this machine is designed to withstand the rigours of daily use while offering a range of advanced features to facilitate ease of operation and safety.

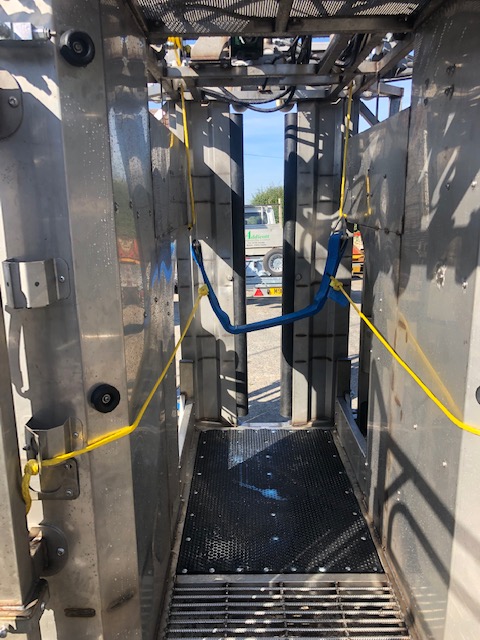

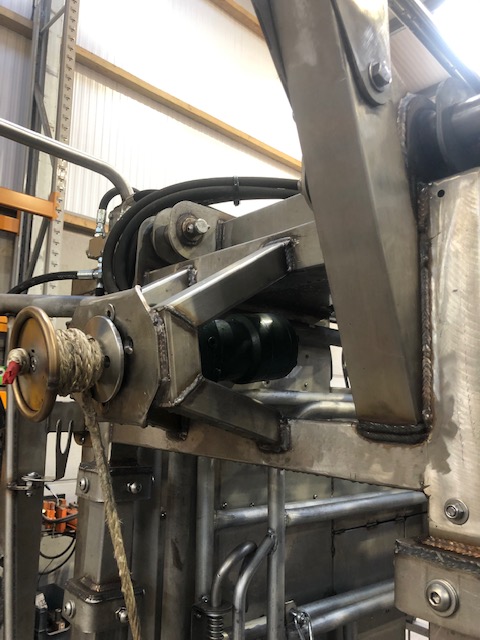

At the heart of the Raise & Foot Trimming Crush is a single-phase hydraulic motor with an accumulator, ensuring smooth and powerful operation. It can be operated both manually and via a remote handheld control, providing flexibility and convenience. The crush includes a comprehensive set of features: raise and lower functions, front and back doors, a belly band, and front and rear legs (with front legs manually controlled).

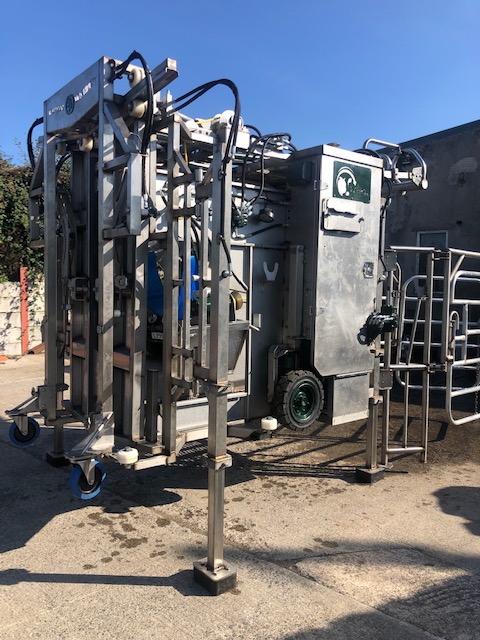

The machine is equipped with hydraulic-driven wheels for easy movement, and alloy rear gates for added durability. The front legs can be held up and rest onto plastic blocks or secured to the underside of a stainless plate, offering versatility in use.

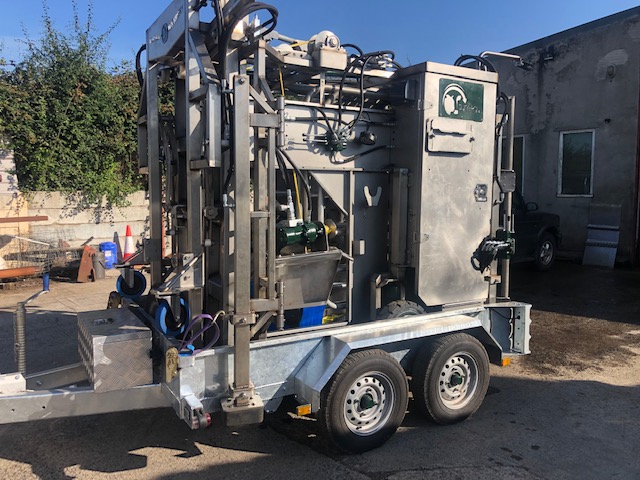

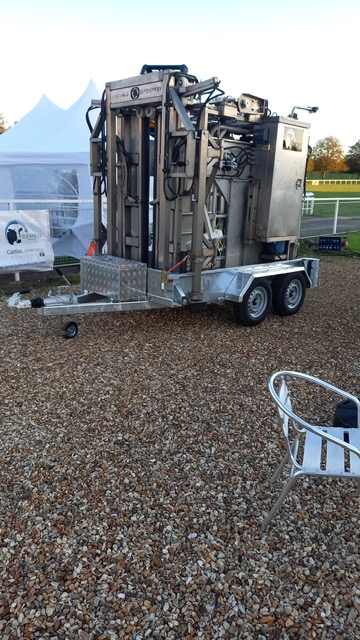

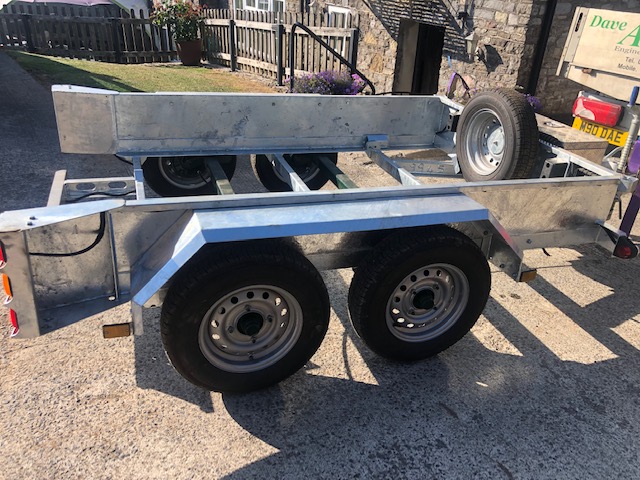

For ease of transport and additional functionality, the Raise & Foot Trimming Crush is mounted on a galvanized twin-axle trailer, complete with an alloy toolbox and a spare wheel. The trailer measures 3750mm in length and 2000mm in width. The crush itself is 2400mm long (excluding alloy gates), 1450mm wide (2400mm across front jack legs), and 2250mm high (2750mm when raised). The combined weight of the crush and trailer is approximately 2060 kg, with the crush weighing 1630 kg and the trailer 430 kg.

The Raise & Foot Trimming Crush is an essential tool for farmers looking to enhance their livestock handling efficiency and safety. For pricing details, please contact us directly.
